Description

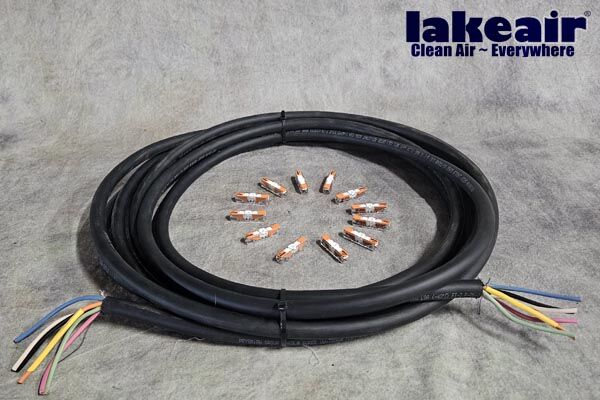

Remote Speed Wiring Kit
This kit includes 6 conductor wire and 13 lever nuts. The potentiometer, mounting plate, switch box cover. speed control dial and miscellaneous hardware is included with your LakeAir Commercial Air Purifier / Smoke Eater. The wire is rated at 600 volts @ 13 Amps.
Basic Wire Diagram
Diagram at Wall Switch Box
Diagram at Unit
Diagram at Unit
About The Wire
- 600 Volt 90°C Flexible Cord. Heat, Moisture and Oil Resistant EPDM Rubber Insulation, Heat, Moisture and Oil Resistant Flexible CPE Jacket.
Type SOOW Flexible Cords UL/ CSA listed are permitted for use as specified by Article 400 and related articles of the 2014 National Electrical Code. The cable is rated -40°C to 90°C, water, oil, and weather resistant. Southwire Type SOOW Flexible Cords are designed for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights, welding leads marine dockside power, power extensions and mining applications.
Specifications
•UL 62 / CSA Standard 22.2 No. 49
• NEC 400
• NEC 501.140 Class I Division 2
• Passes CSA FT2 Flame Test
• MSHA
• Federal and Military Specification JC-580B
• RoHS-2 (European Directive 2011/65/EU
Construction
About the Connectors
Approvals:
- CCA EN60998 / NTR NL-7990
- ENEC 05 EN60998 / 71-127529
- UL UL 486C E69654
- -60 … +105 C
Country of Origin
- DE
ROHS Compliance
- Yes (no exemption)
