LAFC-RC2-H

$2,300.00

  • 900 CFM
  • True HEPA Filter 99.97% to 0.3 Micron
  • 500 gram / 0.75 Carbon Filter
  • Exceptional Particle Removal
  • Size ~ 48″ x 24″ x 11″
  • Ceiling Mount

5% or more Savings and FREE shipping on additional Items

This Bracket Mounts any LAFC flush to Ceiling

We will match the kit to your unit's color

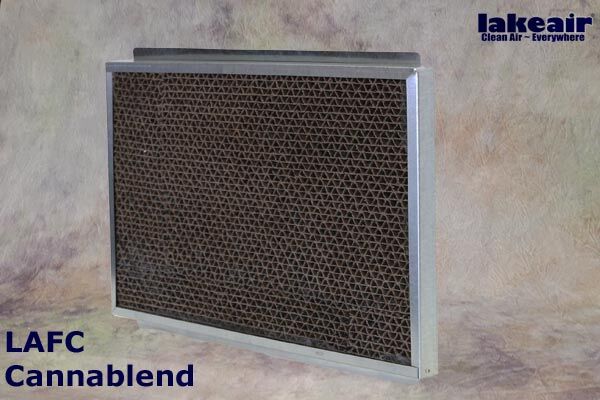

Super Carbon Filter for LAFC units

30 times more carbon than standard

HEPA Filter for LAFC

HEPA Filter For all LAFC HEPA Models

Super Carbon 4 Pack

Save an Extra 18% when you buy 4

Remote Speed Control Wire Kits

Remote Speed Control Wire Kits (choose the # of Feet of Wire)

Product price: $2,300.00
Total options:
Order total:

Description

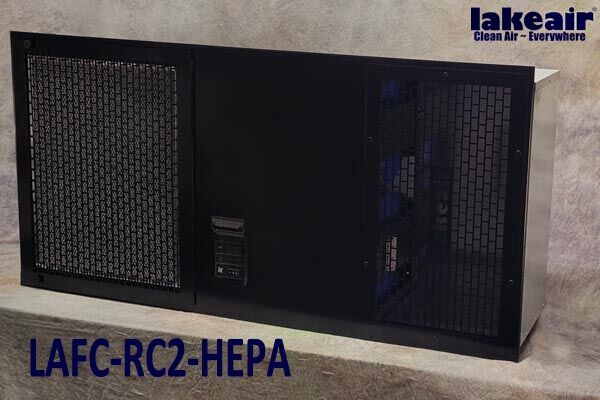

900 CFM HEPA Air Purifier

The LAFC-RC2-H is a new product offering from LakeAir. The RC2 models use dual reverse curved blowers from the famous German fan manufacturer Zeil-Abegg. The new design significantly increases the amount of clean air available in the LAFC platform. A 1000 CFM HEPA air purifier with a starting at $2295.00 is a low price offering. This unit will provide 6 air changes to a 1350 square foot area. It will protect

How It Works

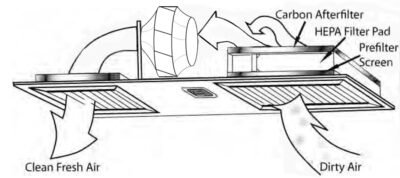

Illustration of how the LAFC-RC2 Works

The powerful dual E Cube blowers pull dirty air up through the MERV 2 Prefilter. This filter removes large debris and allows longer periods between cleaning of the main filter. The dirty air enters the True HEPA filter where the viruses, mold, bacteria, dust, and all other particle are removed. Particle free air then passes through the activated carbon filter. The billions of pores in the carbon bed attract odorous gases and VOCs and hold them there. The now clean air is gently tumbled in the room below.

Effectiveness on COVID and Other Airborne particle

HEPA filters are actively tested for filtration down to 0.3 Microns. This does not mean they cannot trap smaller particles. In fact, they are found to do a better job on even smaller.  In 2016 NASA did a study on submicron particles (less than 1 micron in size). They found that HEPA filters removed near 100% of nanoparticulate matter. The graph to the right is from page 7 of the study and shows a high capture rate of particles that include those the size COVID-19 virus. A further affirmation of HEPA Filtrations value can be sited in ASHRAE Position Paper from April 14, 2020. Here ASHRAE calls for Portable and local HEPA filtration in all medical and non-medical buildings.

Chart Showing results from a NASA Study on HEPA Filters

Results from NASA study on HEPA efficiency and nano particles

While we have made the case for HEPA capturing COVID Size Particles, It needs to be noted that HEPA air purification is an excellent filtration system for many other airborne particles. Smoke, dust, pollen, fine metals, and mold are just some of the pollutants removed from the air by HEPA air filters. This 1000 CFM HEPA air purifier will protect any environment from a host of indoor air pollutants.

Low Draft Design

One of the biggest complaints about ceiling mounted air purifiers is the drafts that are caused. We have designed the LAFC-RC2 units to tumble the air out of the unit. Two sets of louvers on the exhaust end of the LAFC allows you to exercise even greater control of the airflow from it. Most commercial units blow the cleaned air straight down on the occupants below. A cold draft from above makes for a less than ideal experience in most cases.

All Steel Products Made in the USA

LakeAir Products like the LAFC-RC2-M15 1100 CFM MERV 15 air purifier is made from all US steel. We bring the steel into our facility in Racine WI. There we cut the parts out, form the steel and weld it. Starting in the fall of 2022 we added a powder coat line and now we paint the products here too. This a rugged high performance product crafted by American tradesmen and women made to meet the clean air needs of America.

Mounting Options for the LAFC-RC2-H 900 CFM HEPA Air Purifier

LAFC Mount in a 2 x 4 ceiling

Drop In Ceiling Grid

The most common way to mount any LAFC unit is to install it into a 2 x 4  drop ceiling grid. The LAFC is nearly invisible when mounted this way. The grid mount also reduces the noise level of the unit. The LAFC needs only 11: of head-room.

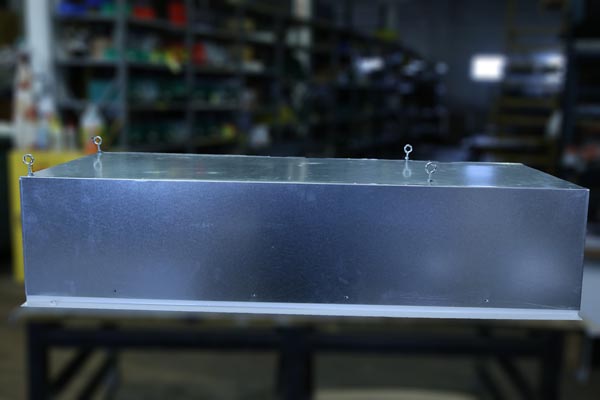

Ceiling Hung

Another popular option is to hang the LAFC from chains or cables. This works well in rooms with tin or high ceilings. The sides of LAFC can be boxed in easily to create a  beautiful addition to your space. The LAFC has (4) 1/4-20 inserts for simple eyebolt insertion.

LAFC Mounting Bracket

Flush to Ceiling Mount

We recently introduced the flush mount kits # 300333 & 300019. These mounts allow you to mount your LAFC directly to any ceiling. They mount to the unit inserts and provide a 24″ on center mounting bracket.

Unit Instalation Size

Many times as customers are getting ready to install a LAFC unit the cut out dimension come into question.  The two images show the units dimensions along with the suspension hardware.

Length Dimension of a LAFC-RC2 by LakeAir
LAFC Dimensions for Fitting

Longevity and Ease of Repair

Universal Wire Harness

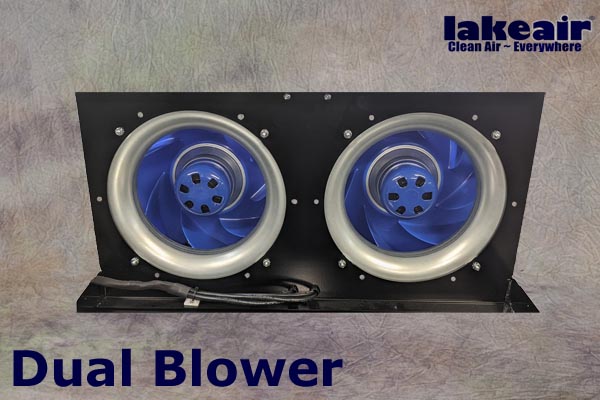

The blowers in the LAFC-RC2 are rated for 60,000 hours of continual use at high speed. That’s 5.5 years of full time service. Most customers will see 10  to 15 years of blower life with normal use. When it is time to replace that blower, you will find it a easy job. with universal wiring blocks as seen to the left.

We don’t use circuit boards or sensors. These Parts are more likely to fail within 5-10 years. Instead we use simple switches that are panel mounted and are easy to replace. We keep all parts in stock. When you need replacement parts we will send full instructions. This way anyone can repair the unit on their own without returning it to the factory.

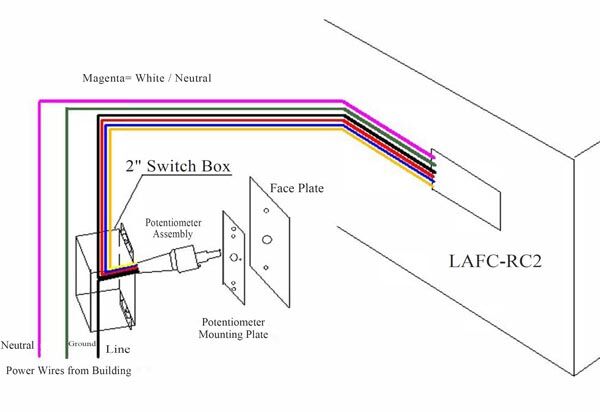

Wiring Instructions

The LAFC-RC2-M15 should be installed by individuals who are competent in general construction practices. Hooking the unit up to the building power has been greatly simplified with addition of the remote speed control wiring kit.

For a quick look at how this unit can be easily wired please visit the Potentiometer Wiring Instructions Page.

Specifications

Capacity   400-900 CFM
Unit Size   47.35 x 23.75 x 11
Unit Weight   95 LBS
Power   120V, AC/60HZ 3 amp
Sound Level   40-68 dB(A) @ 15′
Particle Removal 99.97% efficient  to 0.3 micron
Carbon   granular activated carbon filters
Mount   Drop Ceiling / Chain /Flush
Warranty   7-year Limited
Carbon Filter Life 3-6 months

Additional information

color

Black, White

CADR

890

CFM

900

Efiiciency

99.97% to 0.3 Micron

Filtration

Carbon, HEPA

Mounting

Ceiling Hung, Flush to Ceiling

Power

2-3 Amps

Removes

Allergens, Dust, Gases, Mold, Odors, Pet Dander, Pet Hair, Smoke, Very Fine Partices, VOCs

Speed

Variable Speed Control

voltage

115 Volt, 230 Volt

Weight

95-105 Pounds

Odor-Control

1 ~ 0.75 / 300-500 gram
