• 1100 CFM
  • MERV 15 Media Filter 95% to 0.3
  • 1000 gram / 1.5 Carbon Filter
  • Lower Filter Replacement Costs
  • Size ~ 32″ x 24″ x 11″
  • Flush Wall Mount

Choose Speed Control Mounting *

Please choose where you want your products speed control to be located.

Unit's blower speed is adjusted at the Unit
Units Blower Speed is adjusted at a wall switch
Please Contact me with more information
Product price: $2,150.00
Total options:
Order total:

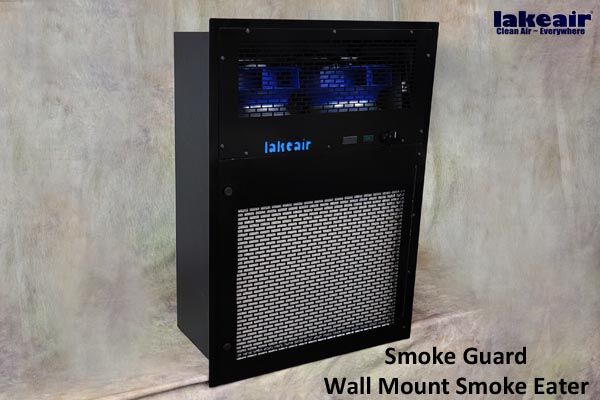

1100 CFM MERV 15 Smoke Eater

The WM2-RC2-M15  Smoke Guard is a 1100  CFM Air Purifier / Smoke Eater . The variable speed controller can be mounted in the unit or can be mounted into a wall switch in another location. The media filter model has a pre-filter, MERV 15 High Capacity anti microbial  filter and 2 chamber carbon filter to remove odors and gasses.

The MERV 15 mini pleat filter removes 95% of all dirt and smoke from the air to a size of 0.3 micron. When operated with the carbon filter in place it does a great job at removing odors as well. The media filter removes easily and should be discarded. The Media filter saves you money every year in comparison to replacing HEPA  filters.

The other two filters add to the performance of the Smoke Guard. The pre filter is a MERV 2 filter and removes the largest of particle from the air. This filter is washable and will last more than a year. The final filter in the WM-RC2-M15 is a 2 chamber carbon filter. This filter contains 2 .5 pounds of activated carbon. The air is drawn directly through the carbon for maximum odor removal.

Air Purification that Melds into your Shop Décor

Finally an Air Purifier  / Smoke Eater you can mount flush to the wall. The Smoke Guard is designed to mount into a wall with  studs set at 24 inch on center. A frame can be constructed that will allow the unit to be set into a wall with 16 inch on center studs. This unit is only 11 inches deep, so only 6.5 inches extend into the adjacent space or outside if desired.

The Smoke Guard ships with a trim kit to give your smoke eater a finished look . The Air purification system  is meant to be a part of the room décor rather than an afterthought. Customizing the trim to better match your shop should be as simple as matching the trim already in the room. Take your air purification to the next level. Your lounge deserves more than a box hanging from the ceiling. The Smoke Guard can change all of that for the better


The Smoke Eater that Builds Your Brand

The Smoke Guard is designed to allow the addition of your business logo or brand right into the unit.  There is an area  16″ x 4.25 inches for your custom art work. For a small engineering fee we will take your logo or brand and make it laser friendly. Almost all logos need alteration. Some might well be impossible to copy closely, but we will work with you to find the laser art to make your smoke guard compliment and help build your brand.

Customized Smoke Guard
Laser Art For Your Smoke Eater
Actual size 16 x 4.125
WM-RC2-M15 Smoke Guard Specifications
Capacity1100 CFM
Filter 1MERV 2 Pre Filter
Filter 219.5 x 16 x 4 MERV 15 95% efficient
Filter 32 Chamber Carbon Filter
Unit Size33″ x 24″  x 11″
Unit Weight 65 Lbs.
Power120 volt @ 2.6 amps
Sound 40-69 d(b)A @ 15 feet
Warranty7 year Limited
note Does not meet California air cleaner regulation requirements: cannot be shipped to California

Additional information






95% to 0.3 Micron


Carbon, MERV 15


Flush to Wall


2-3 Amps


Allergens, Dust, Gases, Mold, Odors, Pet Dander, Pet Hair, Smoke, VOCs


Variable Speed Control


115 Volt, 230 Volt


70-80 Pounds


2 ~ 1.5 / 600-1000 gram
